Green Home / Green Village
EM Solution makes an effort to build eco-friendly world for a better future.
EM Solution will try to become a leading
green growth company in clean hydrogen
energy concerning the environment.

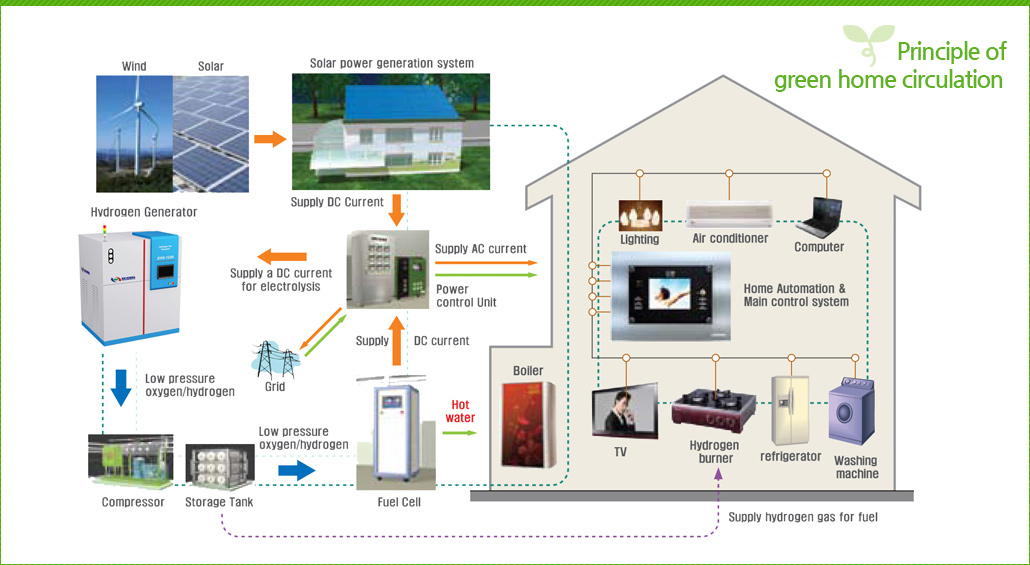

Hybrid green village system consists of providing energy to each hybrid green homes through solar & wind generation. With the rest of the provided energy, it will produce, compress and store the hydrogen. Provide the stored hydrogen to the fuel cell to generate the power to hybrid green homes when having difficulties on providing the new renewable energy to each houses.

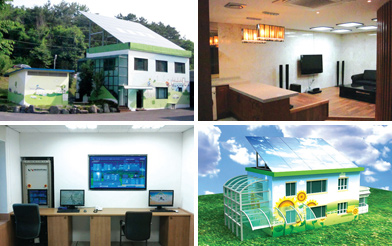

Construction example of Hybrid Green Home
Existing Green village vs Hybrid Green village concept
| Division | Existing green village | Hybrid Green village |
|---|---|---|
| Energy sources | Guided to install one of the solar energy, solar heat, fuel cell, geothermal, or others | A vailable renewable energy sources are used complexly. |
| Applied technologies | Individual system technology | Realize complex and various technologies and passive technologies on them. |
| Main Components | Individual installation of solar energy - electric power/ solar heat - heating/ wind power - electric power/ geothermal - cooling and heating/ fuel cell - electric power, heating, etc. |
The combined installation of the components described on the left. |
| Government support | Government supports are different case-by-case Example : 75% for fuel cell and 50% for solar heat |
Obtained overall support by centralized system |
| Suitable regions | Small scale (15-50 homes) | Medium and large scales (more than 100 homes) are available |
| Expenses | Reduced effects by the dispersed cost | Maximization of effect by the concentrated investment |
Concept of Hybrid Green Village
Green village is a kind of Energy Independence (carbon free) Village, that only use natural energy sources such as solar, wind or geothermal. Energy consumption of the village is minimized by insulation, sun light, and other sources are combined with technology in zero carbon emission.
-
Water is electrolyzed by the electricity obtained from the solar energy or wind power generation to produce hydrogen.
The hydrogen is then compressed and stored however, the stored hydrogen is converted to electricity through a fuel cell.
The energy circulates from solar energy, electricity and hydrogen then electricity.
This process has a concept that the energy can be used in exact form of energy when needed.
Example of Green Village project in Korea
The green villages constructed with solar energy are in Buyeo-gun in Chungnam Province, Palyong-dong in Changwon City, and Shinhyocheon town.
-
Green village at Seokseoung-myeon,
Buyeo-gun, Chungnam -
Green village at Paryong-dong,
Changwon-city, Gyeongnam -
Green village at Sinhyocheon town

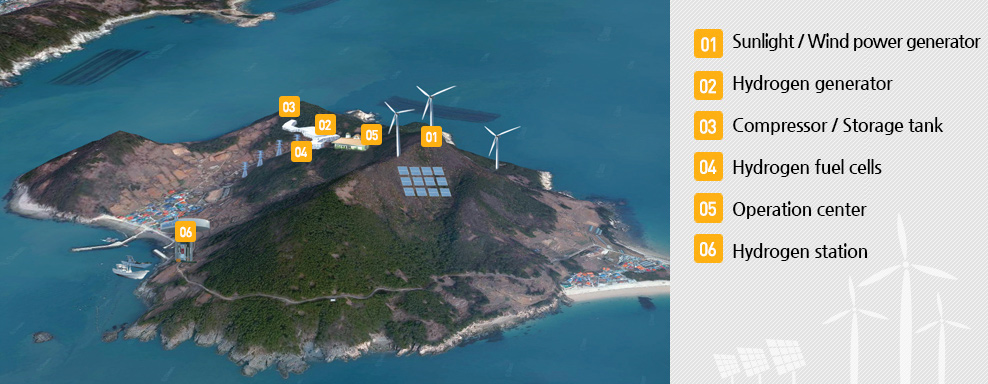

Example of Hybrid green village that EMS will construct
