Eco Crobe

EMS will build industrial waste recycling system to protect the environment

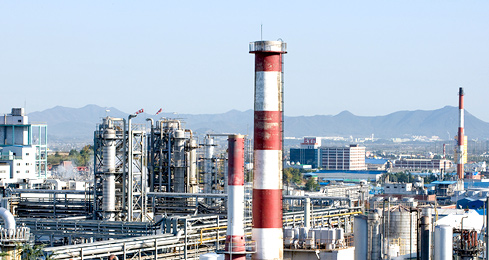

Recycling of industrial waste

Eco Crobe was designed by EMS’s own eco-friendly scientific and bio microbiological technology to decompose industrial waste. EMS has established an eco-friendly system that decompose industrial waste through fermentation using Eco Crobe and solidify depending on the types of sludge to recycle them as a compost.

Meaning of Eco-Crobe

The word “Eco-Crobe” is a compound word of Eco-friendliness and Microbe, meaning that this is a device to decompose industrial waste through fermentation using microorganism as in an eco-friendly way.

Specifications

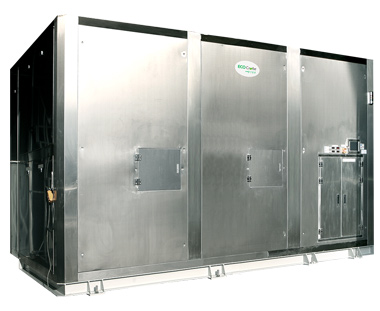

EMK-2TM(2Ton/day)

Technical specifications
MODEL	EMK-2TM
Maximum treatment capacity	2Ton/day
Rated voltage	3ph380/415v, 50/60 Hz
Treatment method	Fermentation and extinction method using the microorganism
Treatment time	Within 24 hours
Deodorization system	Transition metal catalysis methods
Power consumption	22kWh
Weight	12Ton
Dimensions (W x D x H)	5,560 x 2,310x 2,480

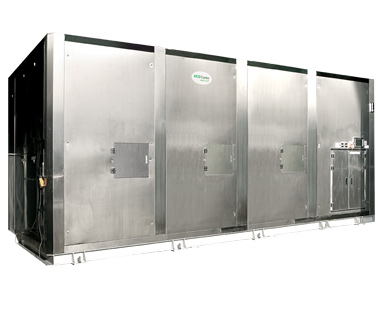

EMK-5TM(5Ton/day)

Technical specifications
MODEL	EMK-5TM
Maximum treatment capacity	5Ton/day
Rated voltage	3ph380/415V, 50/60Hz
Treatment method	Fermentation and extinction method using the microorganism
Treatment time	Within 24 hours
Deodorization system	Transition metal catalysis methods
Power consumption	50kWh
Weight	16Ton
Dimensions (W x D x H)	7,700 x 2,730 x 2,985

Organic waste decomposer

Superb performance recognized by the world

Eco-friendly organic waste decomposer using one-touch automatic system that exports to the world.
It is a patent registered with excellent durability and safety

01. Strong durability

It has excellent resistance to corrosion as it is made of stainless steel

02. One-touch automatic system

It operates by one simple click, through one-touch automatic system
and makes it it easier for users to control using PLC and touch screen

03. Convenience of use

Able to put bulky food waste without cutting
(water melons, radishes, pine apples, fishes, etc)

04. Eco-friendly system

It is a patent registered product and the residuals are recyclable
(such as compost)

05. Energy efficiency

Recognized by the world because it minimizes energy loss
and maximize heat energy

Excellent decomposition

ㆍ90% (±2) of organic waste diminish by
decomposing through fermentation
within 24 hours

Complete removal of offensive odor

ㆍTwo stages of deodorization
ㆍ8 stages of deodorizing
filters are equipped.

Recycling of residuals

ㆍThe residuals would be 10%(±2).
and it is recyclable
  ㆍDo not need to discharge the residuals
     everyday. However, depending on the
     capacity, the residuals need to be
     discharged in every 10~15 days
     (recyclable)

※ Eco Crobe can be semi-permanently used with one administration of microorganism and it is not necessary to change the deodorant

Specifications

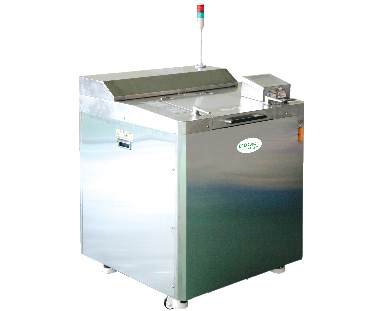

EMK-20M(20kg/day)

Technical specifications
MODEL	EMK-20M
Maximum treatment capacity	20kg/day
Rated voltage	3ph 220V, 50/60Hz
Treatment method	Fermentation and extinction method using the microorganism
Treatment time	Within 24 hours
Deodorization system	Transition metal catalysis methods
Power consumption	0.94kWh
Weight	295kg
Dimensions (W x D x H)	915 x 870 x 1,025

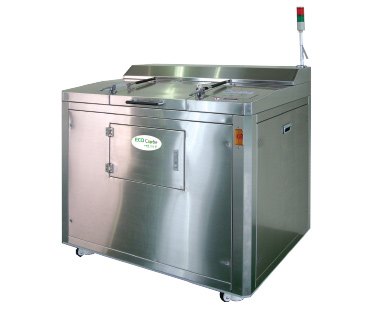

EMK-50M(50kg/day)

Technical specifications
MODEL	EMK-50M
Maximum treatment capacity	50kg/day
Rated voltage	3ph 380/415V, 50/60Hz
Treatment method	Fermentation and extinction method using the microorganism
Treatment time	Within 24 hours
Deodorization system	Transition metal catalysis methods
Power consumption	1.50kWh
Weight	477kg
Dimensions (W x D x H)	1,220 x 990 x 1,100

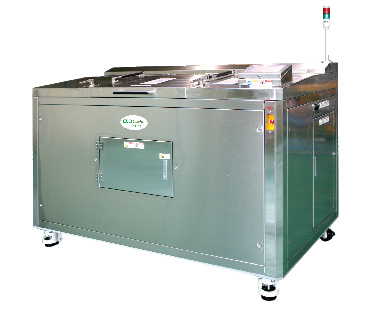

EMK-100M(95kg/day)

Technical specifications
MODEL	EMK-100M
Maximum treatment capacity	95kg/day
Rated voltage	3ph 380/415V, 50/60Hz
Treatment method	Fermentation and extinction method using the microorganism
Treatment time	Within 24 hours
Deodorization system	Transition metal catalysis methods
Power consumption	2.50kWh
Weight	825kg
Dimensions (W x D x H)	1,750 x 1,120 x 1,235

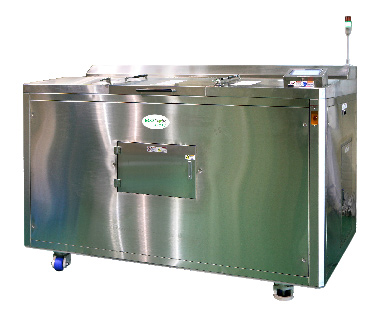

EMK-200M(195kg/day)

Technical specifications
MODEL	EMK-200M
Maximum treatment capacity	200kg/day
Rated voltage	3ph 380/415V, 50/60Hz
Treatment method	Fermentation and extinction method using the microorganism
Treatment time	Within 24 hours
Deodorization system	Transition metal catalysis methods
Power consumption	5.0kWh
Weight	1,400kg
Dimensions (W x D x H)	2,120 x 1,380 x 1,485

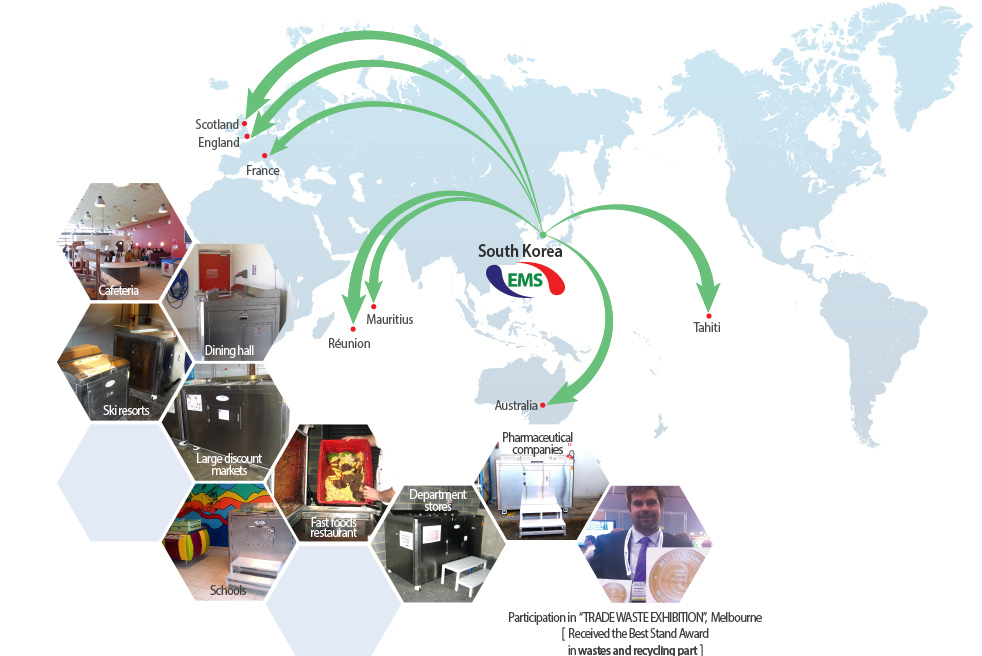

Overseas marketing status France, England, Scotland and Australia

Export status of organic waste decomposer to overseas markets

It is now installed and used in thirty places in European countries such as France and England (including large discount markets, refectories, restaurants, department stores, schools, fast foods stores and ski resorts, etc)

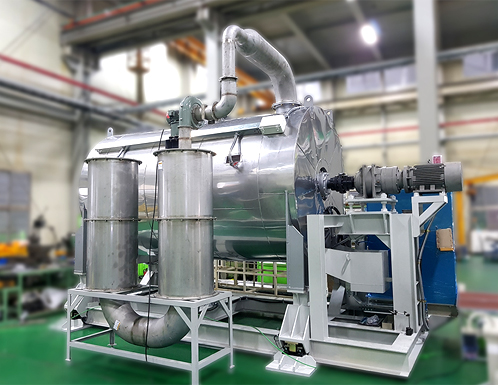

Large Waste Machine Feature

• Seal-type fermenter with little energy, reducing operational cost including electricity
• Side-by-side installation with capacity of 1 to 10 ton can guarantee speedy process and additional room for
     process.
• An option of horizontal- and/or standing-type for space and sites
• Automatic operation and real-time check with PLC touch system
• Processing object : food waste, resin sludge, vegetable sludge, construction material sludge, water waste etc.
    - Reducing the amount of waste by more than 80%
    - Percentage of water content : up to 95%. (Recommended 65~85%)

Horizontal type [ Capacity : 1ton~3ton / day ]

• size : 5,330mm × 3,500mm × 4,100mm

EMK-3TM

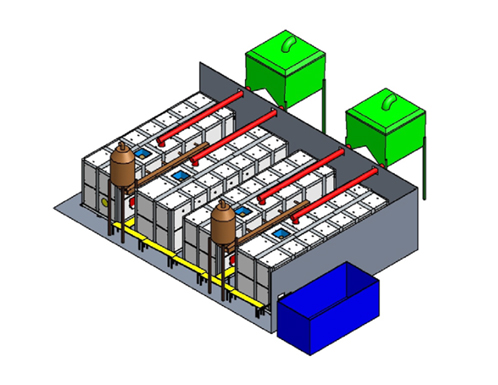

Small sized plants in a row

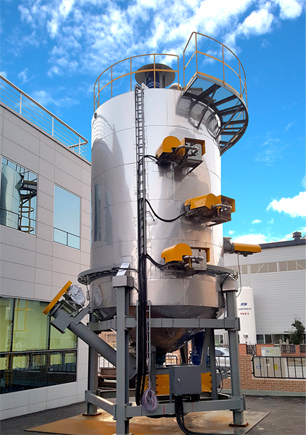

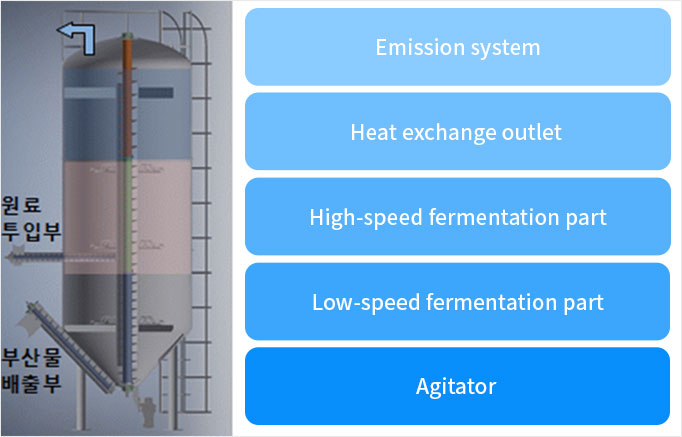

Vertical type [ Capacity : 10ton / day ]

EMK-10TM
