Hydrogen Fueling Station
EM Solution will achieve zero carbon emissions with clean Hydrogen energy
EMS cares about an environment
And is trying to lead green growth company by developing clean hydrogen energy
Considering our environment, we have to change the gasoline cars to the hydrogen fuel cell vehicles or to the electric cars as soon as possible. To supply and expand the market of the hydrogen fuel cell cars, EMS tries to be in a leading position in development and supply of the water electrolysis type commercialized hydrogen station which U.S, Europe, and other developed countries adopt. EMS has constructed a system that compress and store the hydrogen after electrolyzing the water on-site and recharge hydrogen gas to the hydrogen fuel cell cars by 35mpa or 70mpa through the dispenser.
Technical specifications
| MODEL | EHS-100 | EHS-200 | EHS-300 | EHS-500 |
|---|---|---|---|---|
| Capacity(N㎥/h) | 100 | 200 | 300 | 500 |
| The number of cars to be recharged per day | 40 | 80 | 120 | 240 |
| Charging pressure(Mpa) | 35 MPa or 70 MPa | |||
| Speed of recharging / car | 35 MPa | 3~5minute | ||
| 70 MPa | 3~5minute | |||
| Main components | Gas Compressor | Diaphragm / Hydro-Booster | ||
| Storage Vessel | 40MPa More than | |||
| Dispenser | 35 MPa / 70 MPa-Single or Dual | |||
Introduction of Hydrogen station by EMS

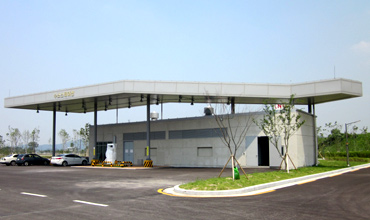

Saemangeum Theme Park(Buan)
- Location
- New renewable energy theme park, Buan-gun, Jeollabuk-do, Korea
- Method
- Electrolysis
- Capacity
- 12 N㎥/h X 2sets (Supplied by EMS)
- Operational vehicle
- it will be secured soon
- Organizing equipment
- Hydrogen generator, Hydrogen purifier, Cooling system, Safety device, etc.

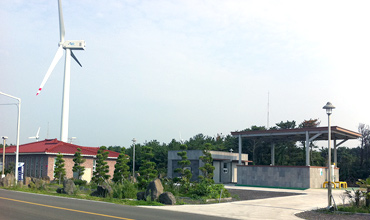

Hyundai Motor company(Jeju island)
- Location
- Gimnyeong-ri, Gujwa-eup, Jeju-si, Jeju-do, Korea
- Method
- Electrolysis
- Capacity
- 5 N㎥/h X 1set (Supplied by EMS)
- Operational vehicle
- Mojave model(2cars)
- Organizing equipment
- Hydrogen generator, Hydrogen purifier, Cooling system, Safety device, etc.

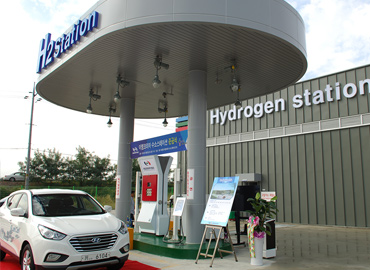

EM SOLUTION(Daegu)
- Location
- #41 Joya-ro 2-gil, Buk-gu, Daegu, Korea
- Method
- Electrolysis
- Capacity
- Max 60N㎥/H
- Organizing equipment
-
- Gas compressor(Diaphragm) : 35 MPa, 50 N㎥/h
- Gas compressor(Hydro-Booster) : 80 MPa, 160 N㎥/h
- Storage vessel : 40 MPa, 1N㎥ X 4
- Dispenser : 35 MPa / 70 MPa
- Chiller : -25℃

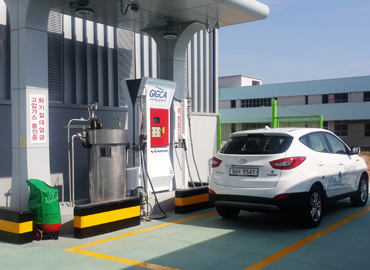

Hydrogen Station(Gwangju)
- Location
- #471-4 Hanam-dong, Gwangsan-gu, Gwangju, Korea
- Method
- Truck-In
- Capacity
- 10Cars/Truck
- Fueling Time
- 5Min.±1Min.
- Organizing equipment
-
- Gas compressor 2SETS(Diaphragm) : 200N㎥/H at 18MPa
- Storage vessel : (1,000 Liter X 4, 40MPa)
- Dispenser(Dual Type) : 35MPa/70MPa
- Chiller : -60℃

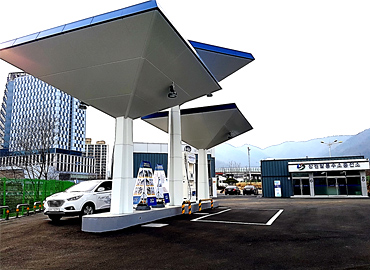

Hydrogen Station(Changwon)
- Location
- 1, Sogye-ro, Uichang-gu, Changwon-si, Gyeongsangnam-do, Korea
- Method
- Truck-In
- Capacity
- 50Cars/Day
- Fueling Time
- 3Min./Cars(SAE TIR J2601 A-70)
- Organizing equipment
-
- Gas compressor : 280Nm3/h(0.5~20MPa to 82MPa / Max.100MPa)
- Storage vessel : 300L X 2ea(82MPa), 721L X 2ea(46.5MPa)
- Dispenser(Dual Type) : 35MPa/70MPa
- Pre-cooling unit : -65℃

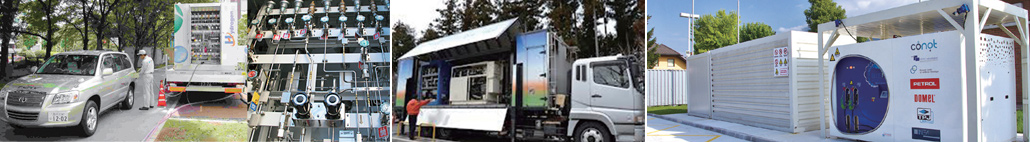

Mobility type of Hydrogen Fueling Station
